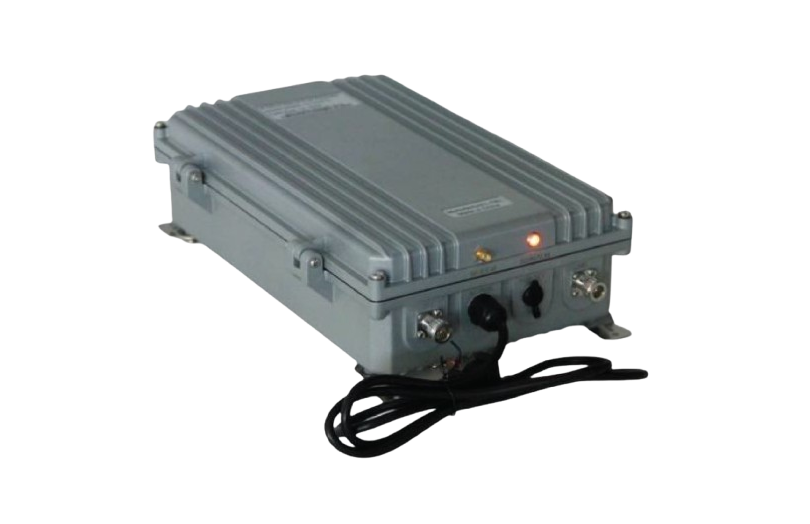

AT-900RP-P33
Aisenton®Repeater are cost effective and reliable solutions designed to
extend and improve the coverage area of mobile communication systems.
(Fixed) Repeaters amplifies in both directions, uplink and downlink a
continuous bandwidth, factory tuned. The presence of a Repeater provides to
the mobile communication system with a high channel occupancy rate, since
coverage is extended beyond site coverage. Typical applications of this line
of booters are indoor situations such as tunnels, buildings, subways, and
outdoor scenarios such as stadiums, rural areas and dense urban areas.
Features & Benefits
Detailed parameters
-
Band width(-3dB)：35Mhz
-
MGC Step Attenuation：≥30dB /1dB step
-
Max. ALC level：≥25dB
-
Intermodulation attenuation：≤-45dBc
-
Noise Figure：≤5dB(at maximum output power)
-
Group delay：≤5us
-
VSWR：≤1.5.
-
Frequency stability：≤0.01ppm
-
RF Connectors：N-female
-
RF Connectors：N-female
-
Impedance：50 Ohms
-
Protection：IP65
-
Operation Temperature：-20 'C to 60°C
-
Power：AC110V or AC220V
-
Monitor：Local USB or Remote SMs
-
Dimensions：250*175*50mm
-
Self diagnostic platform：Microprocessor based
