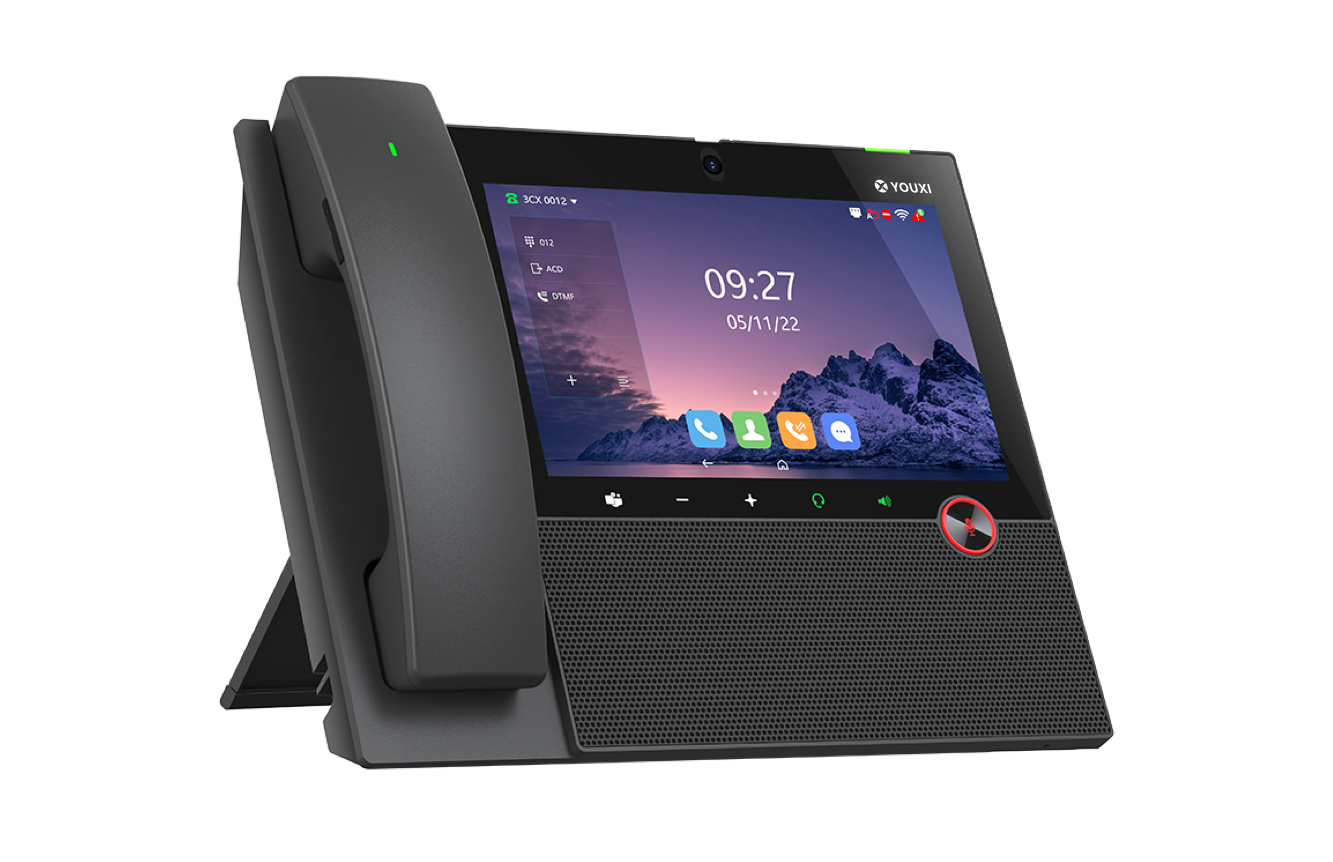

SIP Y80V
Business-grade video series
SIP Y80V series smart video phone supports the BTP50 Bluetooth controller, allowing you to get rid of the limitations of the wired handle, move freely and maintain stable calls within 10 meters of the phone.
Get a Quote
  • Built-in WIFI
  • 16SIP account
  • 800-million-pixel HD camera
  • 10-party meeting
  • Built-in Bluetooth
Detailed parameters
  • 16 SIP lines
  • Quadripartite video conferencing
  • 5-inch 1280*720 color touch screen
  • Dual-band WiFi (2.4G&5G)
  • XML/LDAP address book
  • STUN intranet penetration is supported
  • Dual Gigabit Power over Ethernet
  • Codes: PCMA, PCMU, iLBC G.729, G.723_53, G.723_63, G.726_32
  • Dual network ports support POE, adaptive 10M/100M/1000M
  • Support recording, DTMF/FSK to display, volume adjustment, playback and code receiving
  • Power supply parameters: input AC 100~240V, output DC 12V/2A
  • Power Consumption (PoE): 4-10W
  • Operating environment temperature: 0~40°C
  • There are three configuration modes: web page, phone-menu, and automatic deployment
  • Dial plans are supported
  • Three DTMF modes are supported: In-band, RFC 2833, SIP INFO
  • Video codec: H.265, H.264HP, H.264, VP8
  • Built-in 800-megapixel camera
  • HD sound quality: HD encoding, HD grip, HD hands-free
  • Call park, call answer

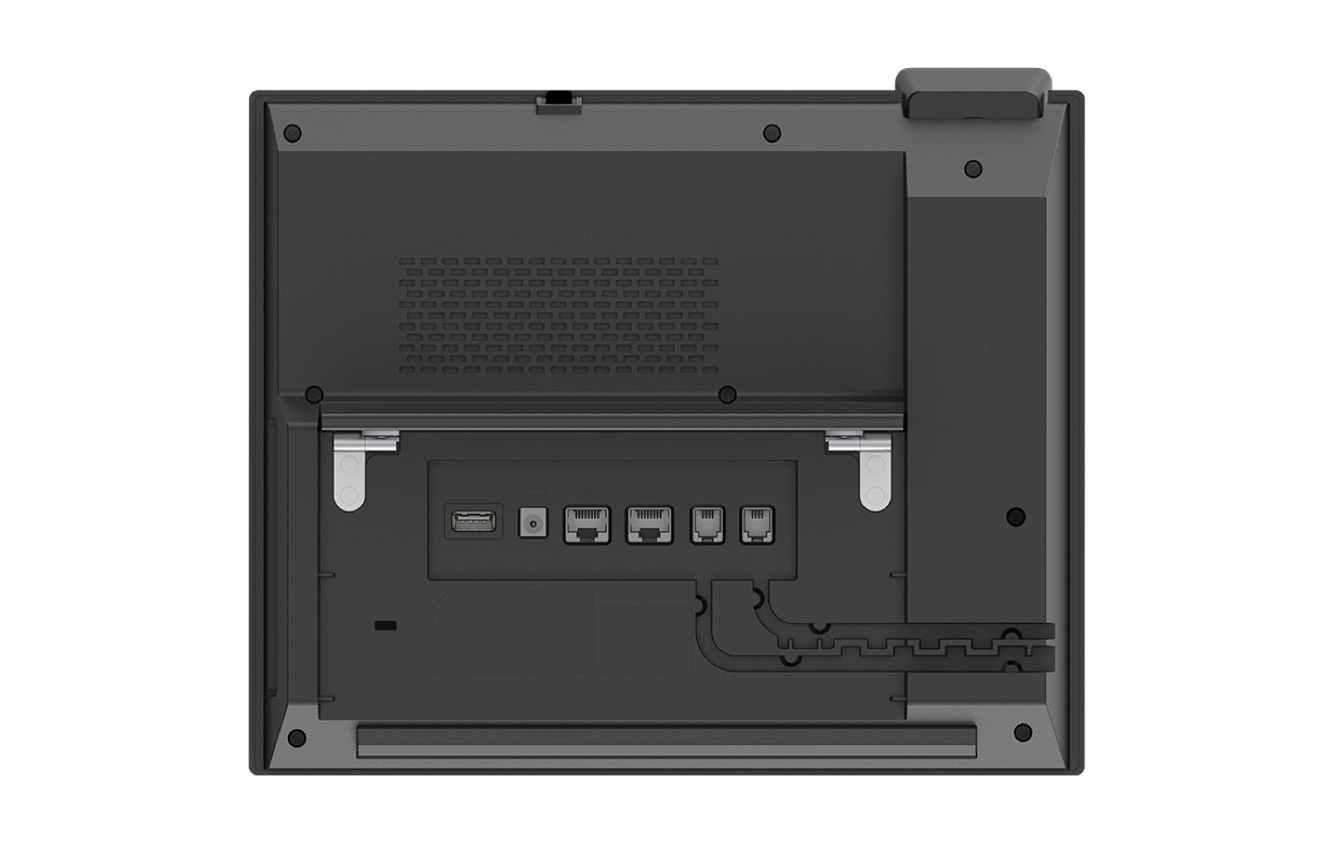

  • 1 USB Type-A port (USB 3.0)
  • 1 x Handle Interface: RJ9 (4P4C)
  • 1 HDMI port
  • 1 security lock slot
  • Support keypad lock to protect personal privacy
  • You can install or uninstall apps through auto-provisioning
  • Transfer speed: up to 867Mbps
  • Frequency range: 2.4 GHz/5GHz
  • Network standard: IEEE802.11 a/b/g/n/ac
  • QoS：802.1p/Q tagging（VLAN），Layer3 ToS DSCP
  • SIP v1（RFC2543），v2（RFC3261）
  • Supports DNS-NAPTR/DNS-SRV (RFC 3263)
  • TLS/SRTP/ZRTP protocols are supported
  • The information verification mechanism MD5/MD5-sess is supported
  • IPv4/IPv6，LLDP/CDP/DHCP VLAN
  • 276 touch-programmable keys
  • Volume control keys
  • 8 function keys for Mute, Message, Headset, Video, Redial, Call Transfer, Call Hold, Hands-Free
  • 3 function keys for headphones, silent and hands-free
  • 1 dedicated touch key for Teams
