You are here:Product Center / SIP phones / SIP Y60W

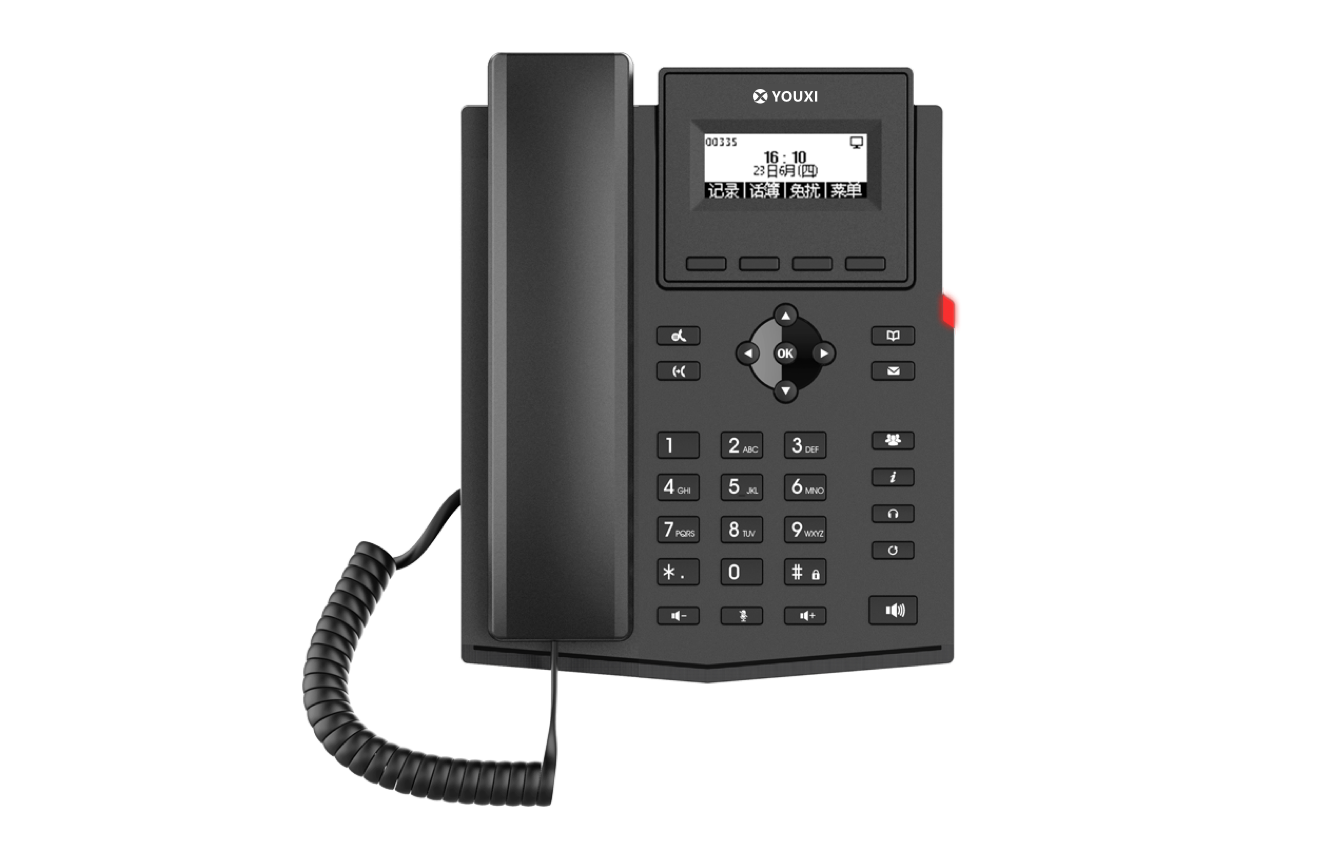

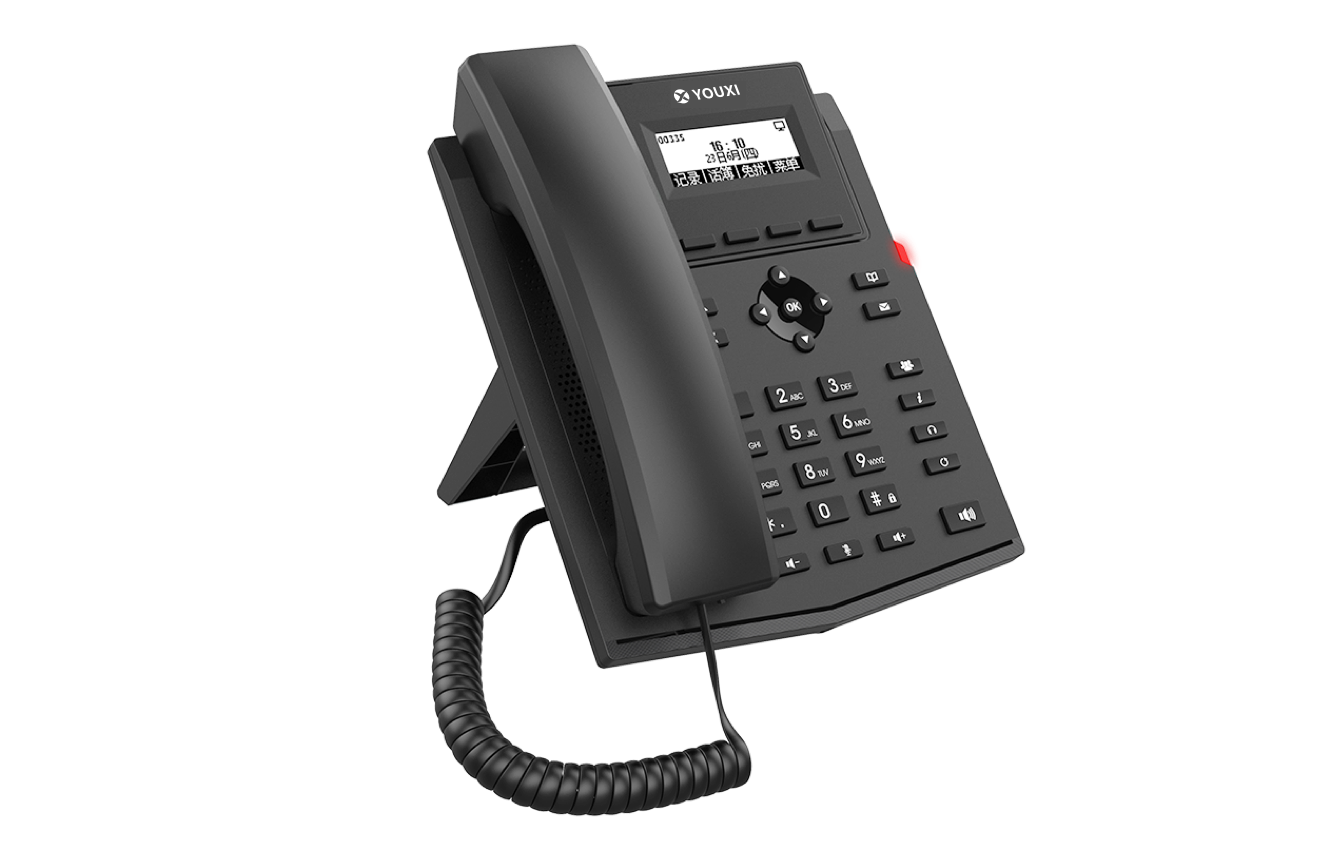

SIP Y60W
Entry-level office IP phones
SIP Y60W is a multi-functional, cost-effective entry-level Wi-Fi phone, equipped with a 128x48 black and white dot matrix screen, with 2 SIP accounts, supporting 2.4GHz > 4GHz Wi-Fi, HD voice, hexagonal voice conferencing and other rich functions; and can be connected to EHS wireless headphones and other extended functions; It can meet different enterprise application scenarios and provide high-quality user experience.
Get a Quote
  • SIP lines
  • HD sound quality
  • Double 100 Gigabit network ports
  • PoE power supply
Detailed parameters
  • HD sound quality
  • Dual 100 Gigabit ports, PoE integration (FIP10P) ）
  • 128*64 pixel black and white screen
  • 2 SIP lines
  • HTTP/HTTPS/FTP/TFTP
  • Narrowband codes: G.711a/u, G.723.1, G.726, G.729A/B, iLBC
  • Action URL/URI
  • Phone book: 1000 sets
  • Supports IPv4 protocol
  • Packet Loss Concealment
  • Dynamic adaptive jitter caching
  • DTMF: In-band, Out-of-Band (RFC2833/SIP INFO)
  • VQM voice quality monitoring
  • IP mode: IPv4/IPv6/IPv4&IPv6
  • IP acquisition method: static IP settings / DHCP / PPPoE
  • Supports 802.1x network access authentication
  • Virtual Private Network (VPN): L2TP / OpenVPN
  • Virtual Local Area Network (VLAN)
  • Link Layer Discovery Protocol (LLDP)
  • Quality of Service (QoS)
  • RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
  • Standard RJ9 handle curve x1
  • 1.5M CAT.5E network cable x1
  • Status Indicator x1 (Red)
  • RJ9 port x2: handle x1, earphone x1
  • RJ45 interface x2: Network x1, PC x1 (Network Bridge Mode)
  • Security lock slot x1
  • DC Input: 5V/0.6A
  • Power consumption: 0.8~1.29W
  • PoE power consumption: 1.25~1.86W
  • Operating temperature: 0°C- 45°C
  • Relative humidity: 10~95%
