UC2000-VH
GSM VoIP Gateway
GSM VoIP Gateway

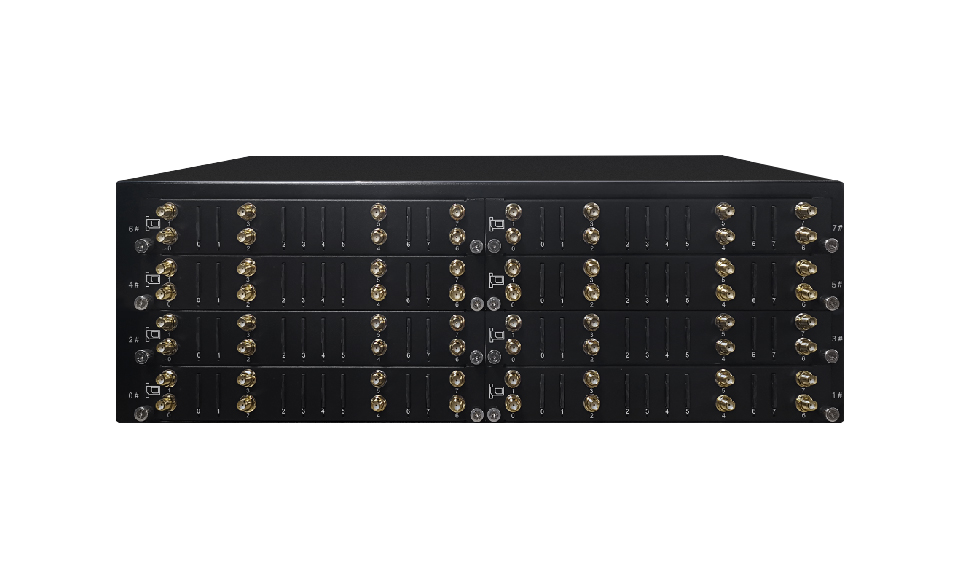

UC2000-VH series GSM VoIP Gateway is a 64 channels wireless gateway based on youxi new hardware platform and powerful embedded CPU, leveraging state-of-art and latest VoIP / SIP technology, which enables the smooth transit between mobile network and VoIP networks. Supporting up to 64 concurrent calls and LCD display, makes it a unique choice in market for users who need a higher capacity wireless gateway in one single box.
Moreover, with open API, it allows users to build their own application software to send SMS/USSD messages or bulk SMS messages, or push their text messages from email, HTTP etc. It is suitable for enterprises, multi-site organizations, call centers and areas with limited landline like rural area to cut down telephony costs and enable easy & efficient communications.
Detailed parameters

-
64 SIM slot, 64 antennas
-
Built-in antennas combiner (Optional)
-
GSM: 850/900/1800/1900Mhz
-
Codecs: G.711A/U , G.723.1, G.729AB
-
Echo Cancellation
-
DTMF: RFC2833, SIP Info
-
Programmable Gain Control
-
Mobile to VoIP, VoIP to Mobile
-
SIP Trunk and Trunk Group
-
Port and Port Group
-
Caller/Called Number Manipulation
-
SIP Codes Mapping
-
White/Black List
-
PSTN/VoIP Hotline
-
Abnormal Call Monitor
-
Call Minutes Limitation
-
Balance Check
-
Random Call Interval
-
Auto CLIP
-
Signaling & RTP Encryption
-
SMPP for SMS
-
Configure Backup/Restore
-
Firmware Upgrade by HTTP/TFTP
-
CDR(10000 Lines Storage Locally)
-
Syslog/Filelog
-
Traffic statistics: TCP,UDP,RTP
-
VoIP Call Statistics
-
PSTN Call statistics: ASR,ACD,PDD
-
IVR Customization
-
Auto Provisioning
-
SIP/RTP/PCM Capture
-
Work with youxi SIMCloud/SIMBank (Optional)
