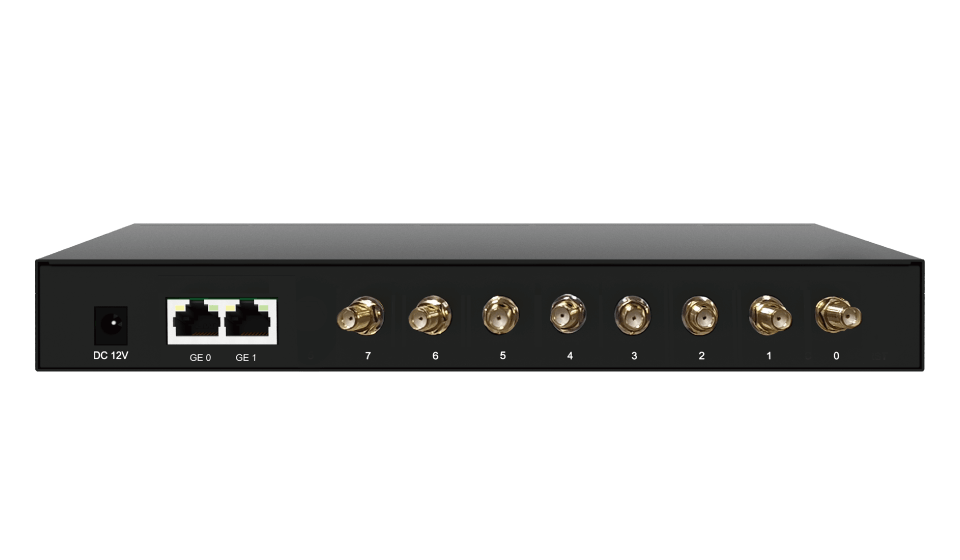

UC2000-VE
GSM/WCDMA/LTE VoIP Gateway
UC2000-VE is a 4 or 8 channels GSM/3G/4G Gateway in a compact field-proven hardware design, used to smoothly transit between mobile and VoIP networks, for transmission of both voice and SMS. Integrated GSM/WCDMA/LTE connectivity and SIP protocol compatible with mainstream VoIP platforms, it is suitable for enterprises, multi-site organizations, call terminators and areas with limited landline like rural area to cut down telephony costs and enable easy & efficient communications. It works standalone and also supports remote SIMs management as an option with youxi SIMBank and SIMCloud.
Get a Quote
  • VoLTE
  • Voice
  • SMS
  • API
  • SIP
  • SIMCloud
Detailed parameters
  • 4/8 SIM slot, 4/8 antennas
  • Built-in antennas combiner (Optional)
  • GSM: 850/900/1800/1900Mhz
  • Codecs: G.711A/U , G.723.1, G.729AB
  • Echo Cancellation
  • DTMF: RFC2833, SIP Info
  • Programmable Gain Control
  • Mobile to VoIP, VoIP to Mobile
  • SIP Trunk and Trunk Group
  • Port and Port Group
  • Caller/Called Number Manipulation
  • SIP Codes Mapping
  • White/Black List
  • PSTN/VoIP Hotline
  • Abnormal Call Monitor
  • Call Minutes Limitation
  • Balance Check
  • Random Call Interval
  • Auto CLIP
  • Signaling & RTP Encryption
  • SMPP for SMS
  • Configure Backup/Restore
  • Firmware Upgrade by HTTP/TFTP
  • CDR(10000 Lines Storage Locally)
  • Syslog/Filelog
  • Traffic statistics: TCP,UDP,RTP
  • VoIP Call Statistics
  • PSTN Call statistics: ASR,ACD,PDD
  • IVR Customization
  • Auto Provisioning
  • SIP/RTP/PCM Capture
  • Work with youxi SIMCloud/SIMBank (Optional)
